Azure Horizon Design System

1. Overview & Creative North Star

Creative North Star: "The Digital Concierge" Azure Horizon is built on the philosophy of "Streamlined Hospitality." It moves away from the chaotic density of traditional administrative portals toward a calm, editorial experience. The system leverages high-contrast blue accents against a pristine architectural white canvas to guide students through their daily journey. By utilizing intentional whitespace and soft depth, Azure Horizon transforms functional utility into a premium lifestyle companion.

2. Colors

The palette is dominated by a vibrant "Electric Azure" primary color, used sparingly but intentionally to drive action.

• The "No-Line" Rule: Sectioning is achieved through color-blocking and surface shifts rather than 1px borders wherever possible. In instances where a boundary is critical, use outline-variant (#e2e8f0) at 50% opacity.
• Surface Hierarchy:
  • Base Background: #f6f7f8 (The "canvas")
  • Primary Surface: #ffffff (Used for cards and interactive containers)
  • Nesting: Use surface-container-low for secondary background elements within a white card (e.g., info boxes or metadata tags).
• Glass & Gradient: Floating action buttons and the bottom attendance scanner should utilize a subtle 15% saturation gradient of the primary color with a 20px backdrop blur when overlaying content.

3. Typography

The system uses a pairing of Plus Jakarta Sans (Headlines) and Inter (Body/Labels) to create a modern, technical yet approachable feel.

Typography Scale:

• Display/Headline 1 (1.25rem / 20px): Bold, tight tracking (-0.02em). Used for section titles like "My Accommodation."
• Title (1.125rem / 18px): Semi-bold. Used for card headers and primary names.
• Body Large (1rem / 16px): Regular weight for primary functional text.
• Body Medium (0.875rem / 14px): Standard body copy and secondary buttons.
• Label Small (0.75rem / 12px): Secondary metadata and support text (e.g., "3rd Floor").
• Caption (10px): Ultra-small utility text for navigation labels and micro-stats.

4. Elevation & Depth

Azure Horizon rejects heavy drop shadows in favor of "Atmospheric Layering."

• Shadow-SM (0 1px 2px 0 rgba(0, 0, 0, 0.05)): Used for standard cards to create a slight lift from the #f6f7f8 background.
• Shadow-LG (0 10px 15px -3px rgba(19, 127, 236, 0.3)): Reserved exclusively for the "Primary Floating Action" (e.g., Scan Attendance) to create a signature glow.
• Tonal Layering: Depth is primarily communicated by nesting a surface_container element inside a surface card.

5. Components

• Buttons:
  • Primary: Solid Azure with rounded-xl (0.75rem) corners.
  • Secondary: 10% Opacity Azure background with Azure text (Ghost style).
• Cards: White background, 0.75rem border radius, subtle border (#e2e8f0).
• Quick Action Tiles: Square-leaning cards with center-aligned icons in tinted containers (Red-100 for grievances, Purple-100 for support).
• Navigation: Persistent bottom bar with active states indicated by the primary color and filled icon variants.

6. Do's and Don'ts

Do:

• Use the 10px typography for navigation labels to maximize vertical scan space.
• Apply rounded-full (pill shape) to status indicators and avatars.
• Use horizontal scrolling for roommate/person lists to keep the vertical layout clean.

Don't:

• Do not use black text; use #0f172a (Slate-900) for better readability and a "softer" premium feel.
• Do not use more than two primary buttons on a single viewport.
• Avoid using pure grey shadows; use a tiny hint of the brand blue in shadow values for a cohesive look.

7. UI Screens

Screenshot	Screen Name
	Login Screen

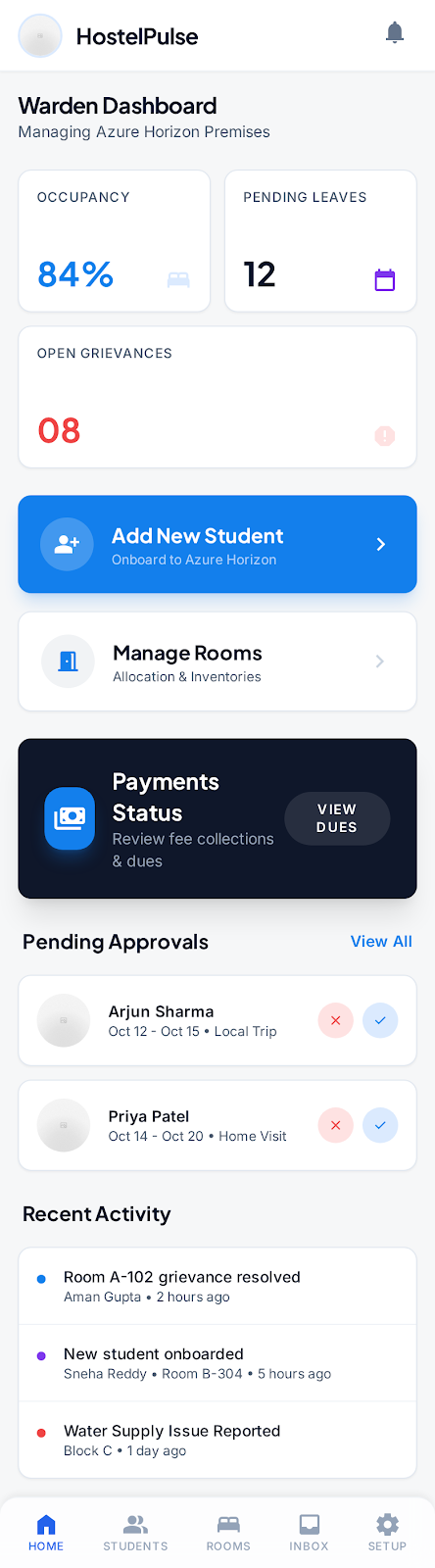

	Dashboard
	Students Directory

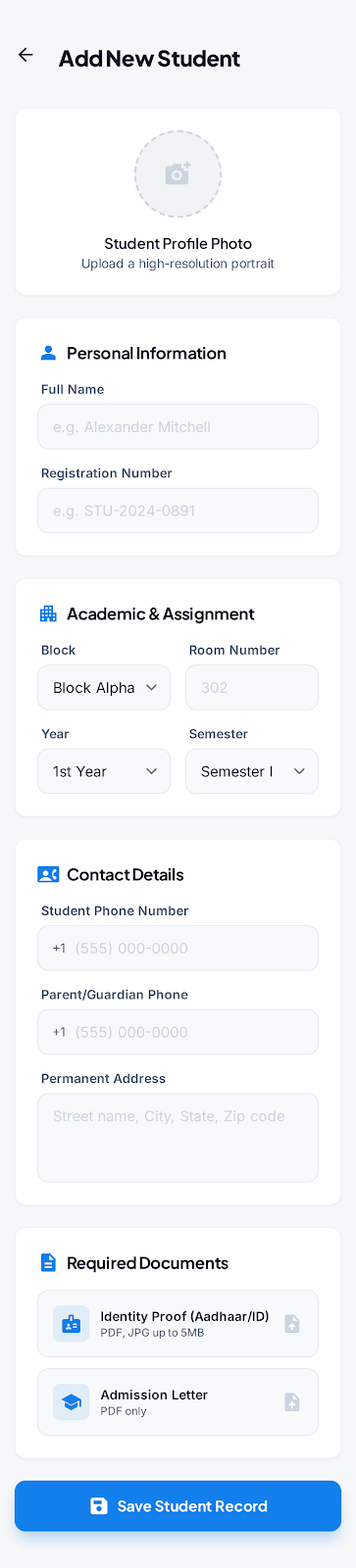

	Add Student

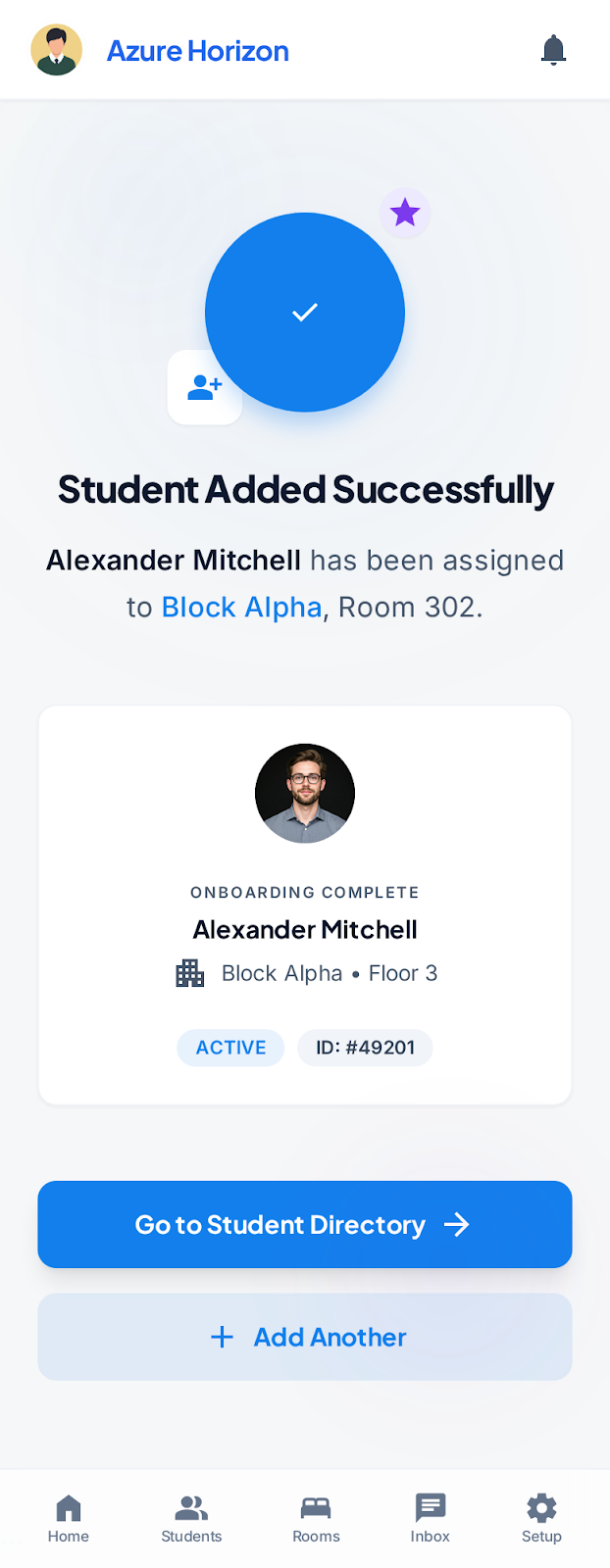

	Student Add Success

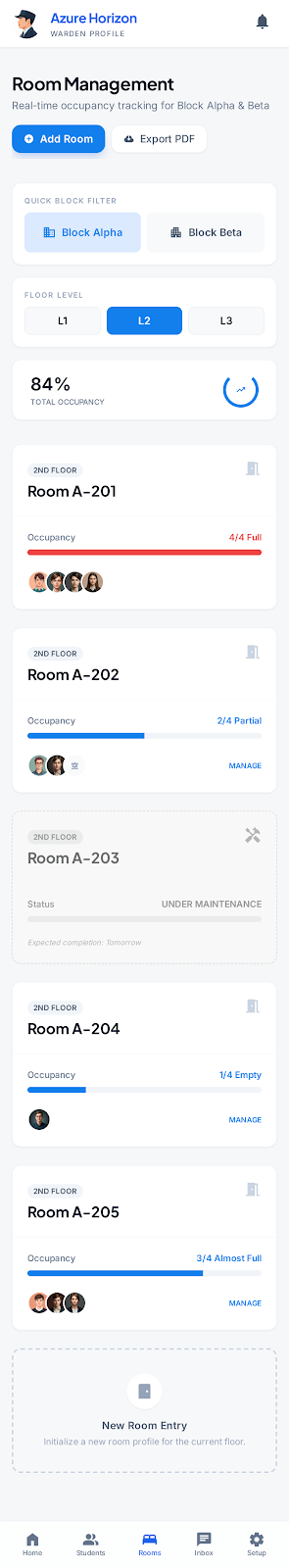

	Room Management
	Create Room

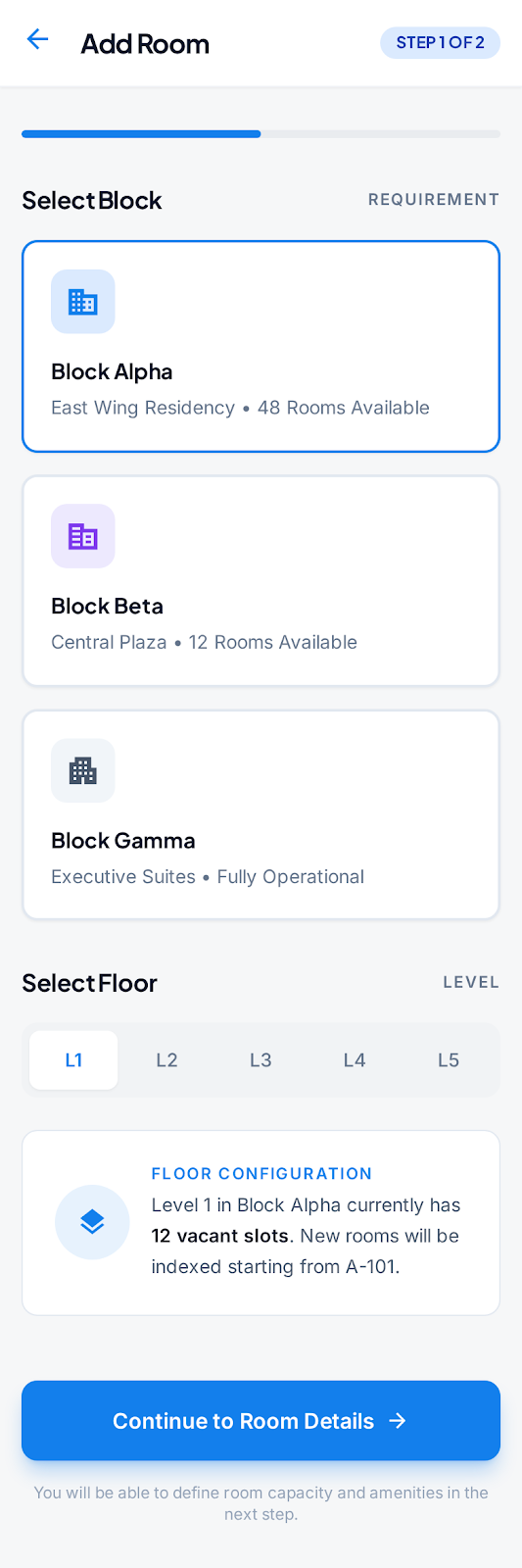

	Room Assign Step 1
	Room Assign Step 2

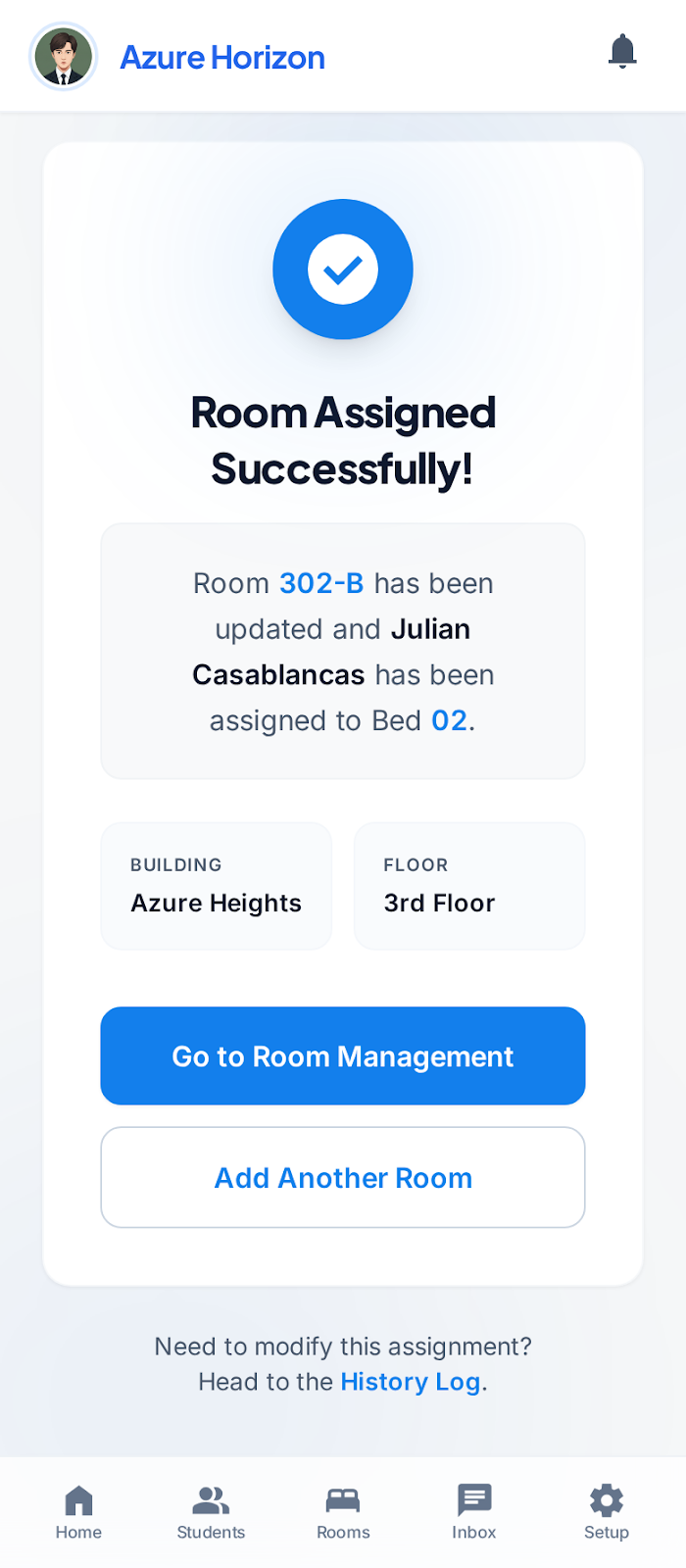

	Room Assign Success

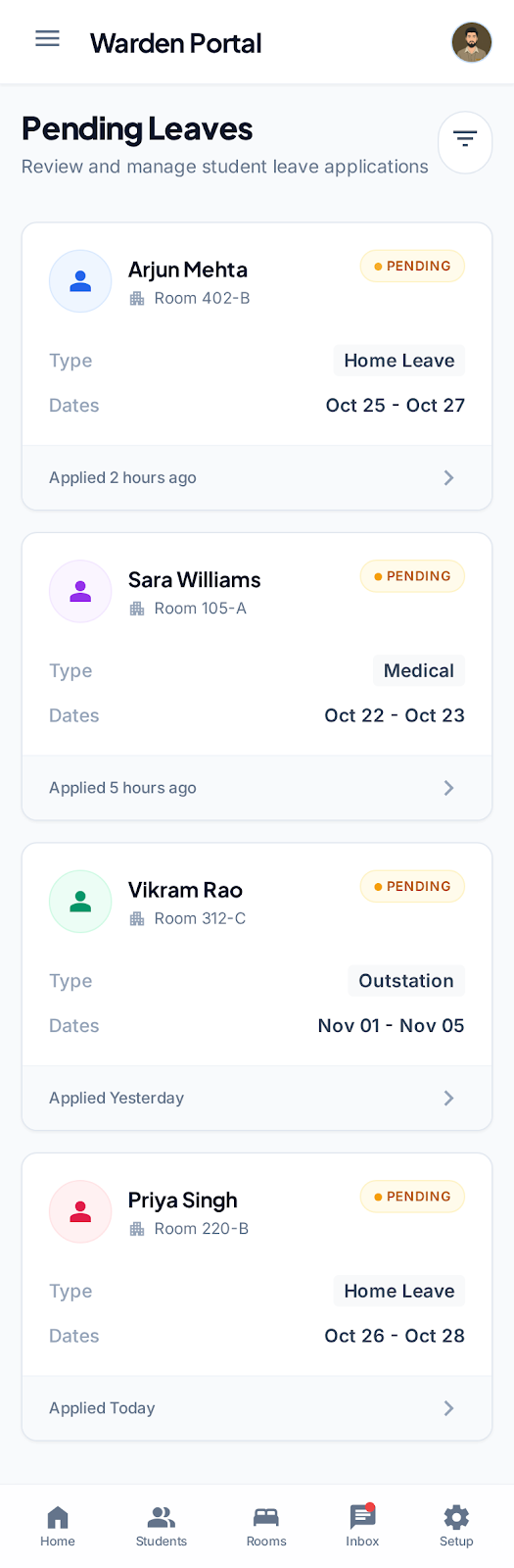

	Leave Requests

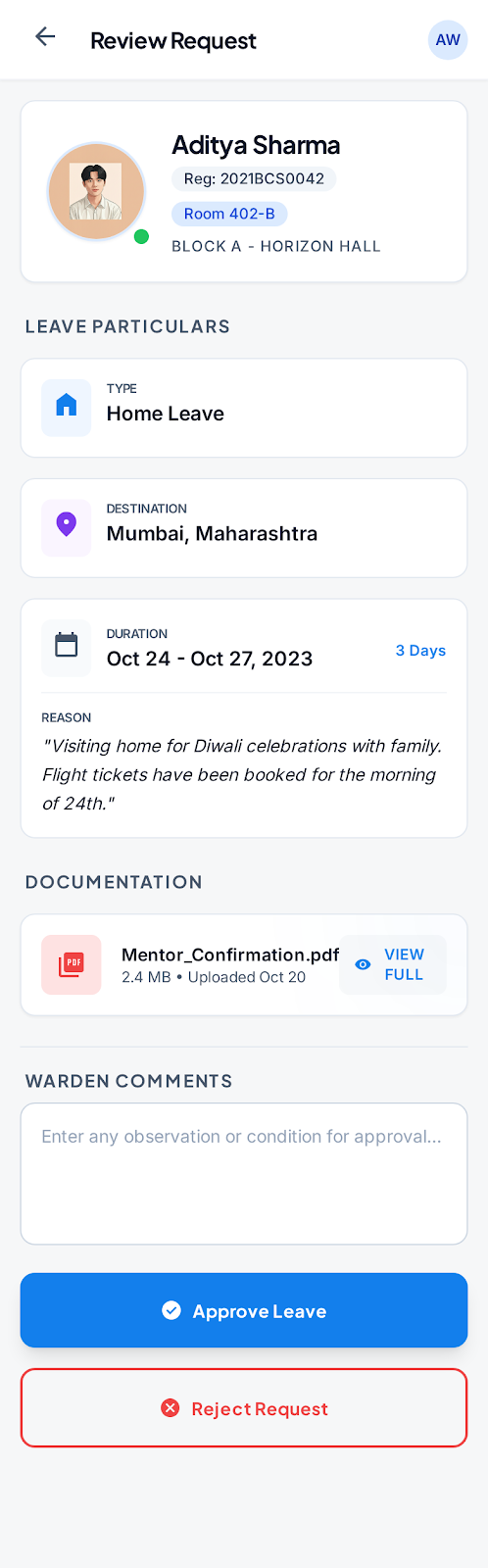

	Leave Details

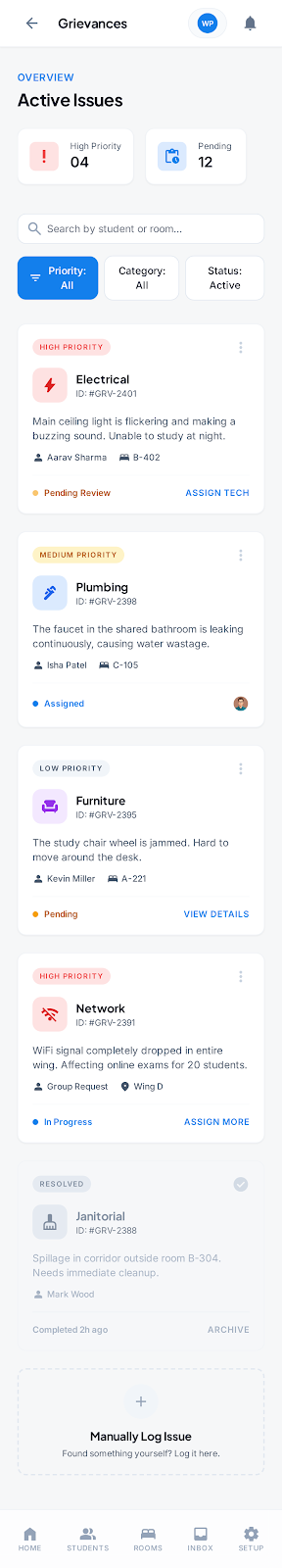

	Grievance Manage

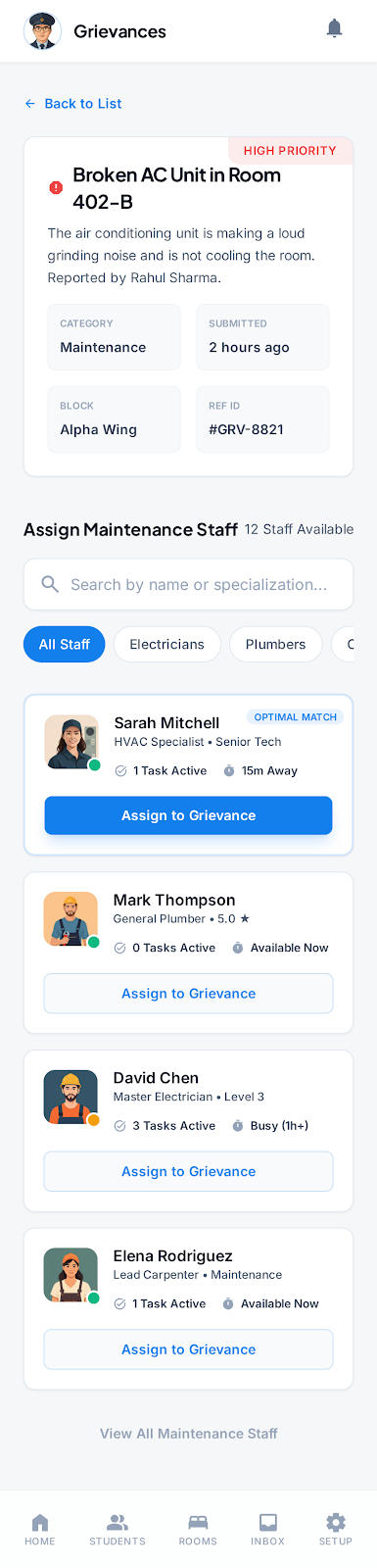

	Grievance Assign Staff

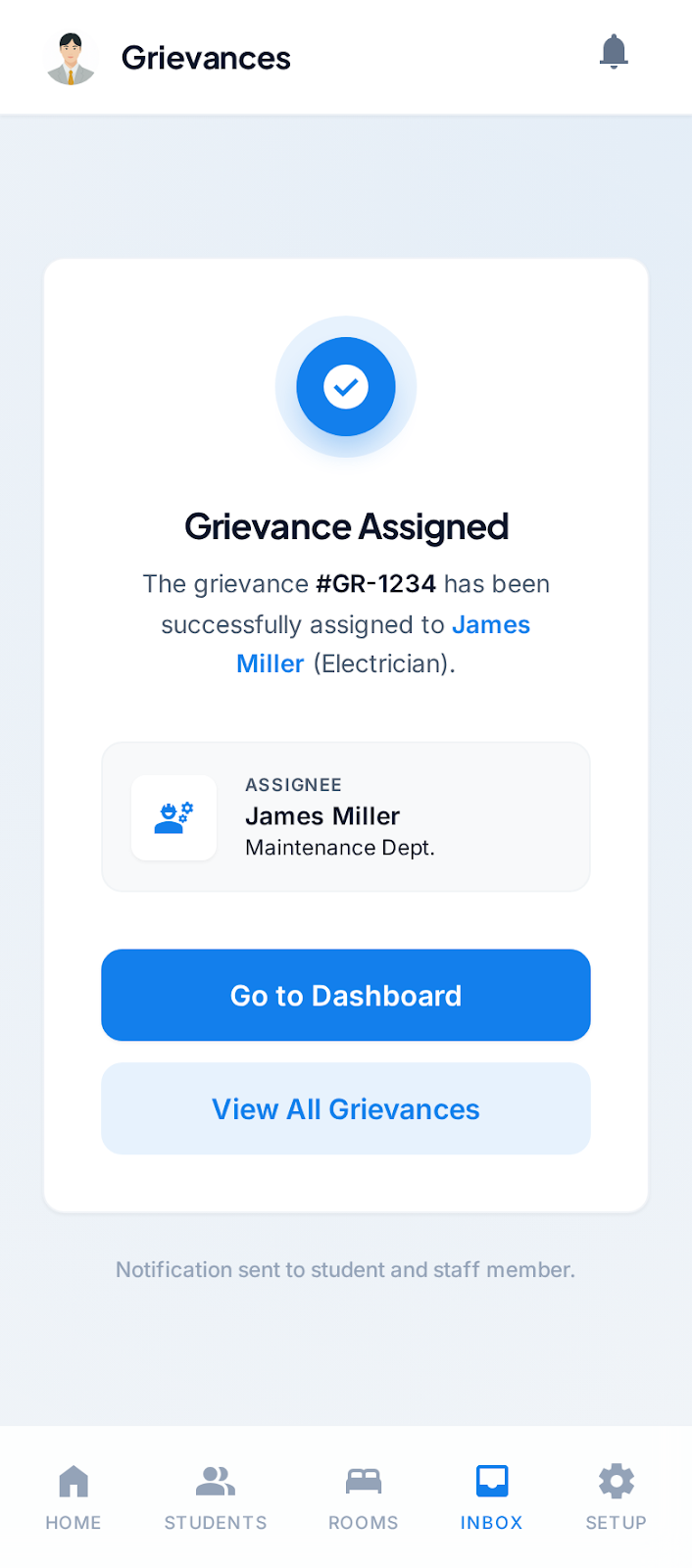

	Grievance Success

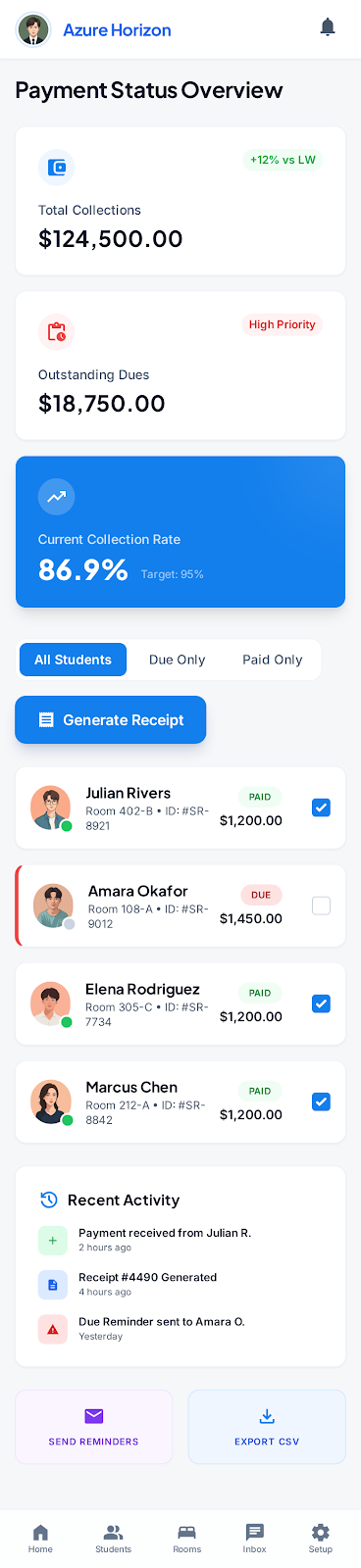

	Payment Status

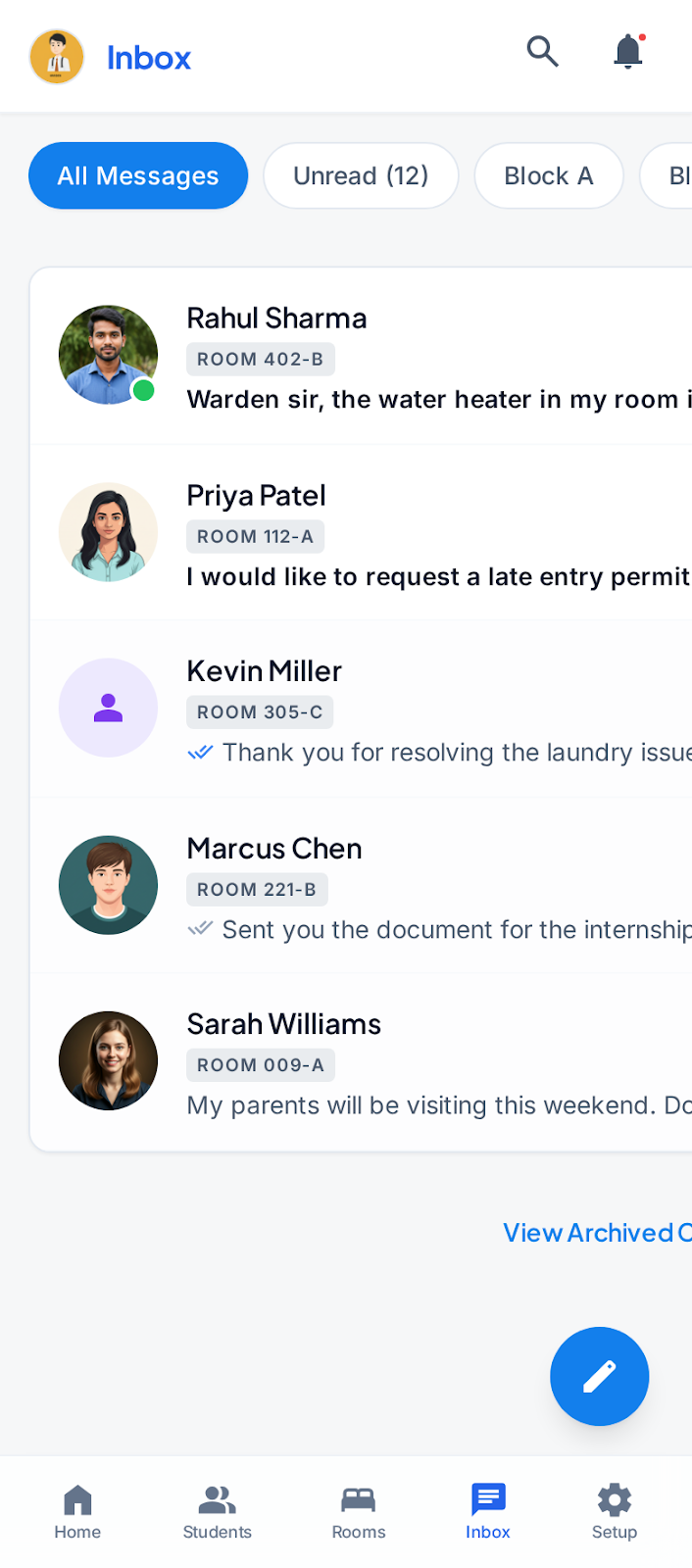

	Student Inbox

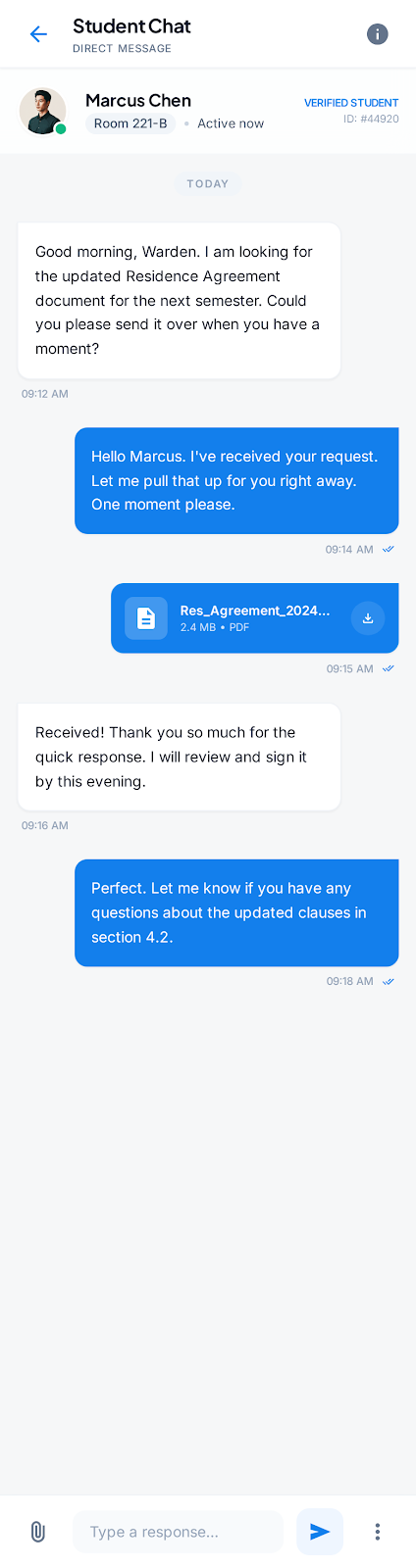

	Chat View
	Notification

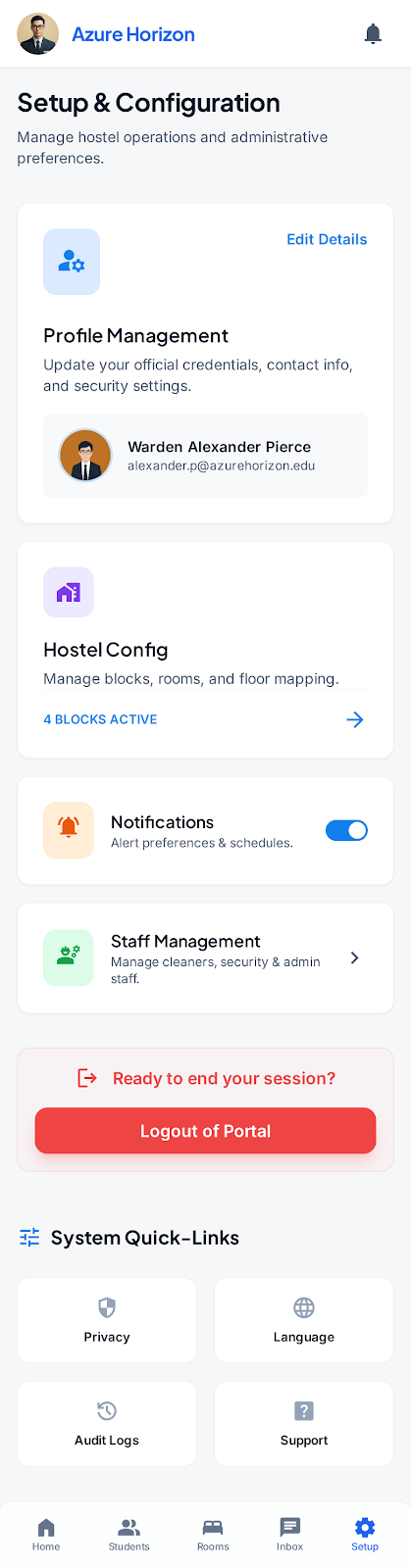

	Settings

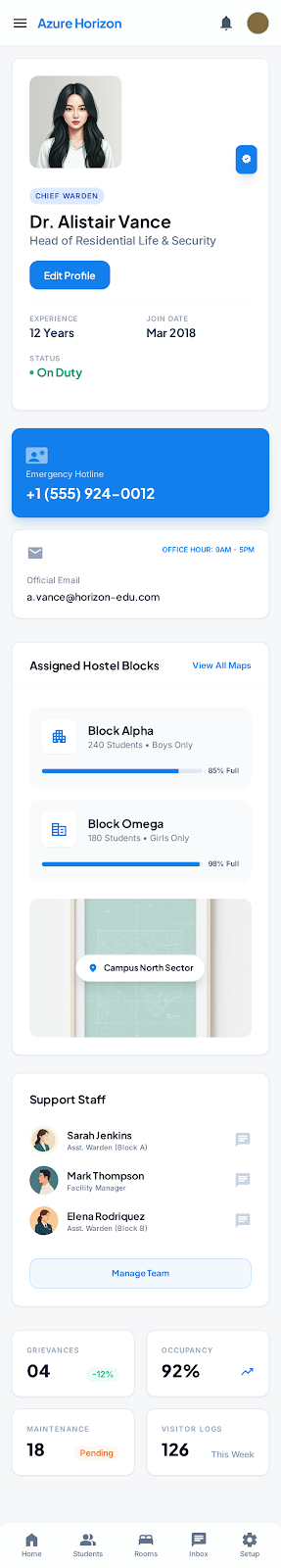

	Profile
